GX Tank 140
£102.90 (incl. VAT)
In stock
Secure payments
Your payment information is processed securely. We do not store or have access to your card details.
We accept payment from:
Get more time to pay with Klarna
When you choose Klarna at checkout, you’ll get the option to split your purchases into 3 interest-free payments, or pay in 30 days. 18+, T&C apply, Credit subject to status.

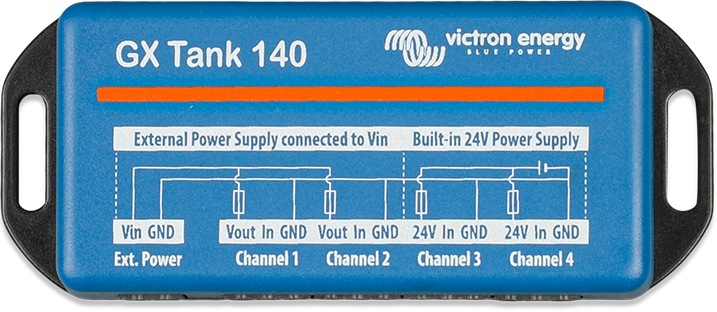

The GX Tank 140 takes readings from up to
four tank level sensors. It is an accessory for our range of GX system
monitoring products, of which the Cerbo GX is the most
commonly used model.
Tank levels can be read-out locally in
the system, see screenshot, as well remotely through our VRM Portal.
The GX Tank 140 is compatible with current
senders (4 to 20 mA) as well as voltage senders (0 to 10 V). The connection to
the GX Device is via USB, which is also how the GX Tank is powered: no
additional power wires required.
Tank sender wiring is kept as simple as possible: two of the four inputs provide a 24 V power supply, to power the sender. The other two channels do require an external power supply, and there is a power in terminal together with fused outputs to facilitate that.
Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example 0 to 5 V.
To provide a stable reading, the
readings are averaged damping. The damping can be configured between 1 and 60
seconds.
Faulty sensors and wiring issues are
detected: an alarm will be raised when values are out of range.
For marine applications, the GX Device can transmit these tank levels on the
NMEA 2000 network to be picked up by other displays such as an MFD.
| Model |
|---|
